65 Model standing seam metal roof panels

Overview of the product
The 65 model vertical seam metal roof panel is a high-rail, concealed-fastening, mechanically-bolted metal roofing system, mainly made of aluminum alloy. The vertical seam metal roof panel has no exposed nail holes. It is directly locked and locked together with the roof ribs through special supports to achieve overall waterproofing and wind resistance. The system has good waterproof performance and strong wind resistance, and can be laid continuously in arc-shaped, fan-shaped, and other irregular roof forms. It has the advantages of beauty, lightness, durability, and maintenance-free. The standing seam metal roof panels are widely used in large-span steel structure buildings such as airports, venues, stations, factories, and other buildings.

Product features
1. The applicable inclination angle can be as low as 1.5°.
2. The panel has various shapes and can be processed into straight plates, curved arc plates, and fan-shaped plates.
3. The panel length is unlimited, and there is no need for a connection.

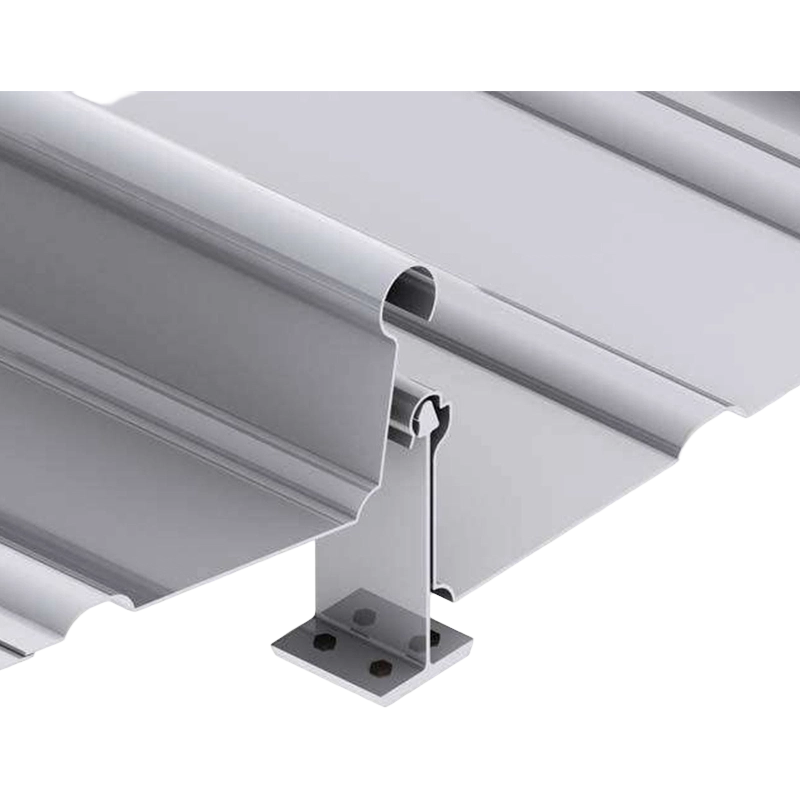

4. The panel is securely fixed by means of a dedicated bracket with concealed fasteners, and there are no exposed screws on the roof.

Product advantages
1. Using the 360° edge-locking technology, it achieves structural waterproofing for the roof and also has excellent wind resistance performance.

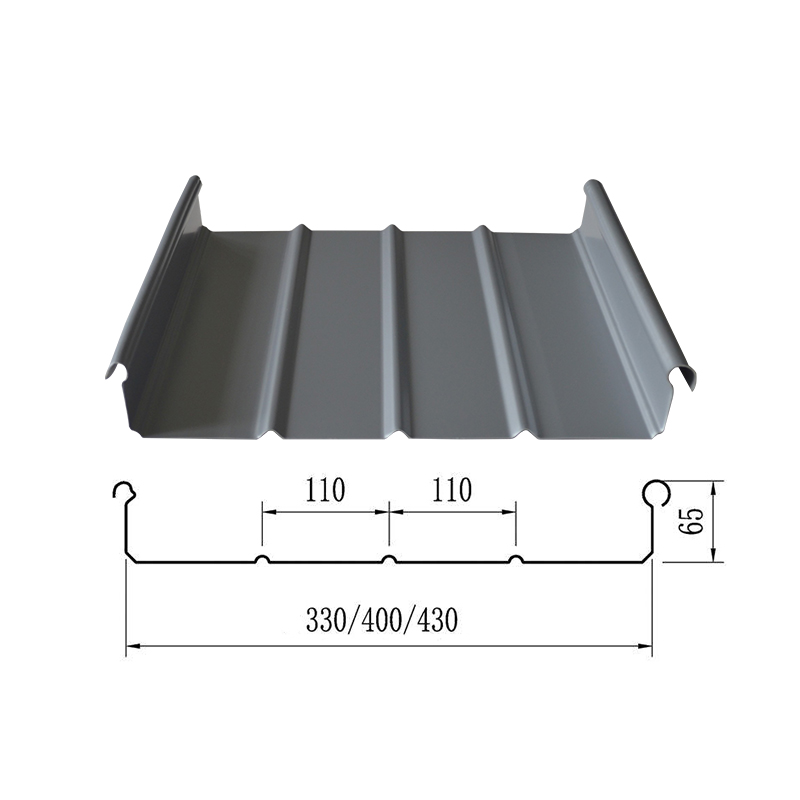

2.65mm high rib stand seam with excellent drainage performance;
3. The roof panels are made of aluminum-magnesium-manganese alloy, which is lightweight, has high strength, and a long service life.

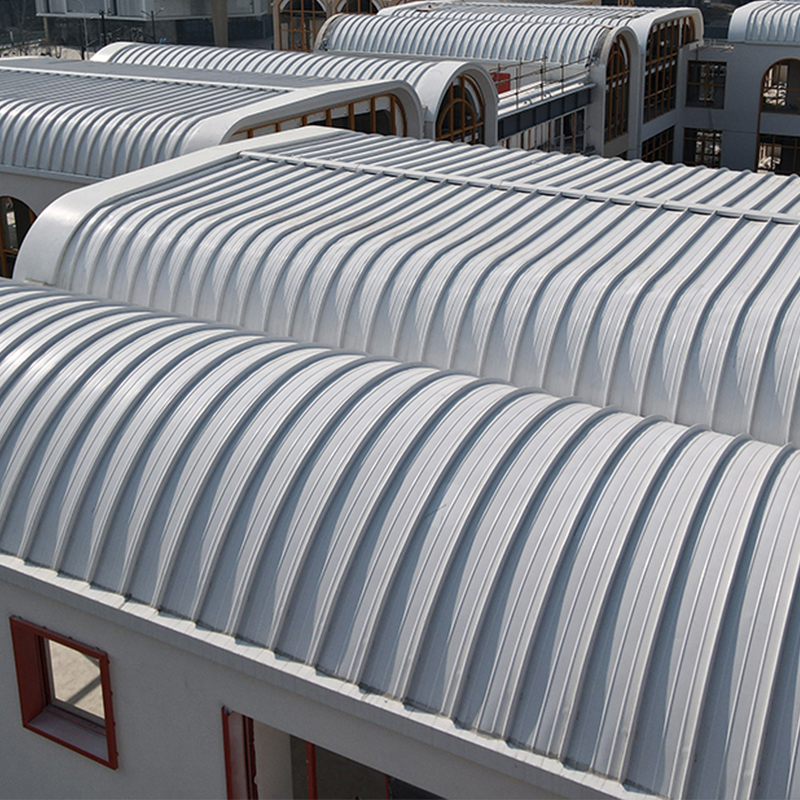

4.It can be adapted to irregular roof shapes such as arc-shaped, fan-shaped, and hyperbolic surfaces, with strong plasticity and a wide application range.

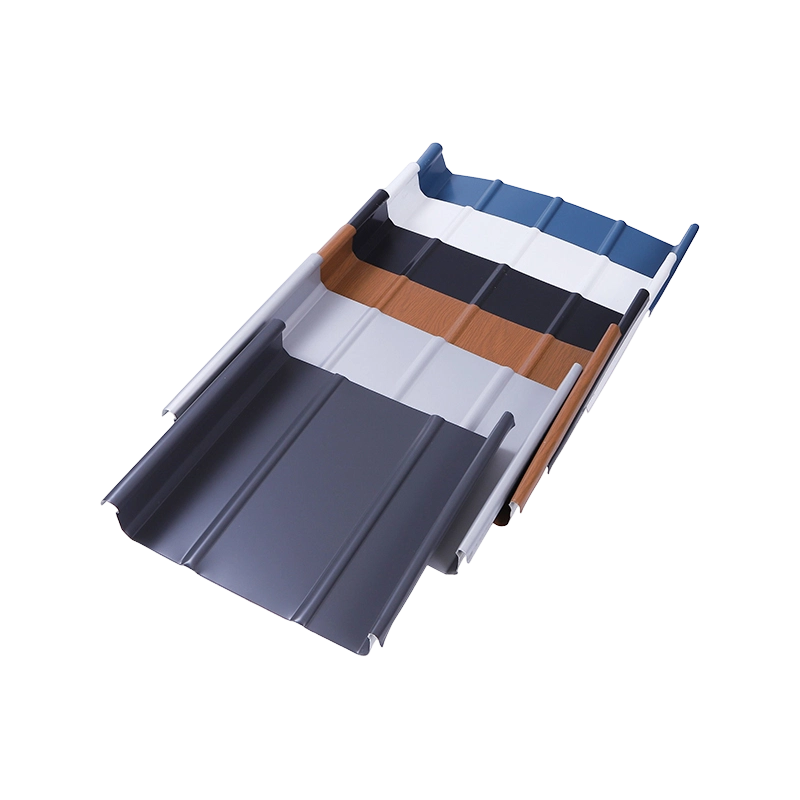

5. Colors and sizes can be customized.

Application scenario

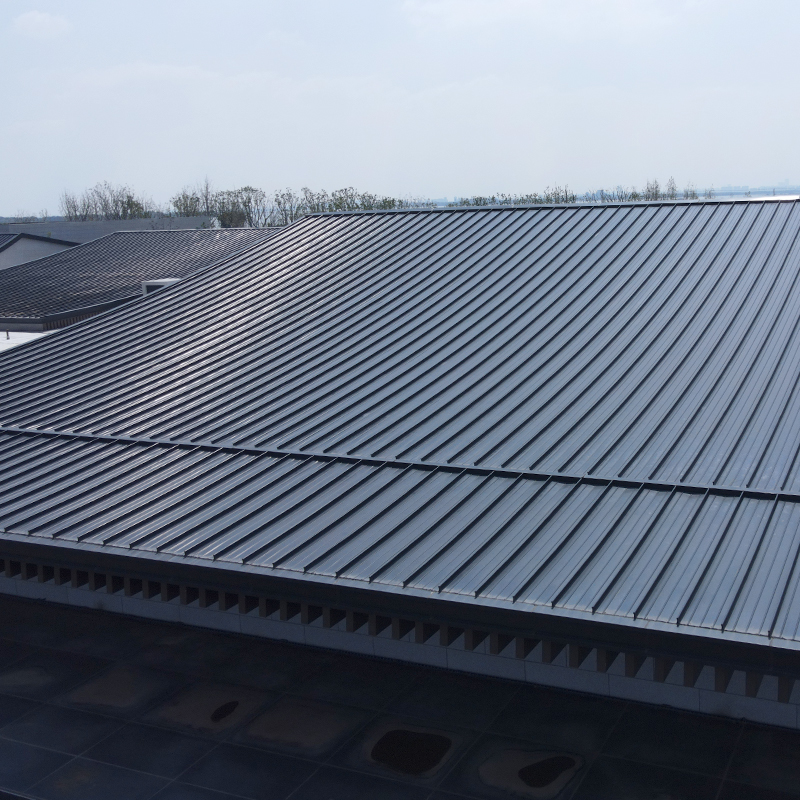

Roofs of large-span steel structure buildings, such as high-speed railway stations, stadiums, and factories
